EV TRUCK TRANSPORT REFRIGERATION SYSTEMS

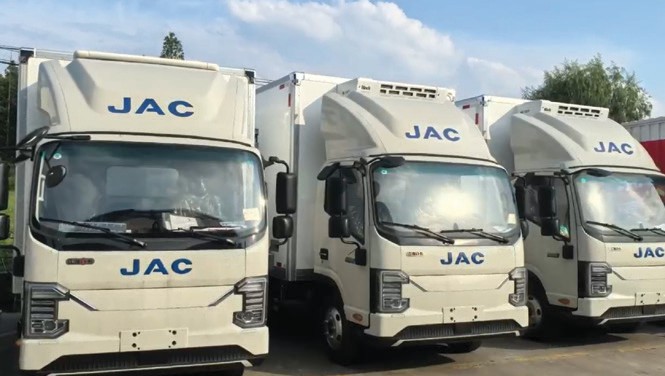

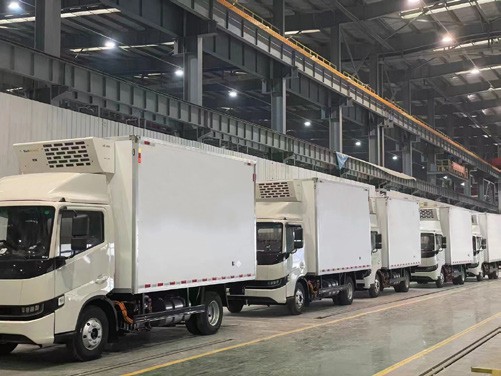

Blackshields is a leading OEM supplier of transport refrigeration systems for Chinese EV trucks: FOTON, JAC, HYUNDAI, LDV and GEELY.

images

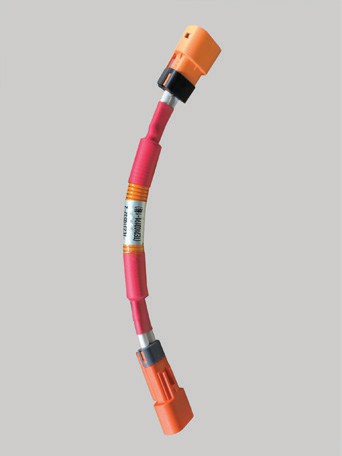

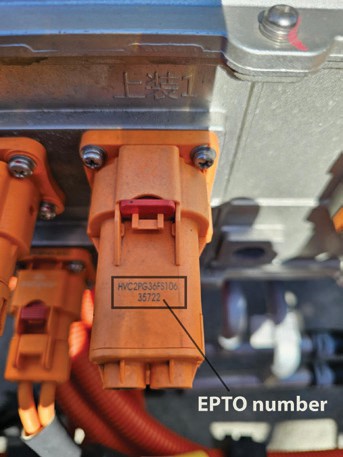

HV adapter plugs to suit all EV brands. Just take a photo of the EPTO plug number.

Our plug and play system takes the worry cut of installation. Plug directly into the truck's high voltage EPTO system and be up and running in no time. No auxiliary batteries that ad extra weight and need charging separately required

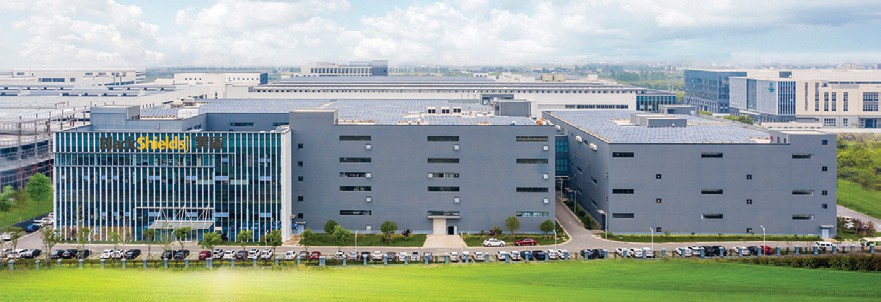

Blackshields Climate Control Technology(Suzhou)Co.,Ltd.

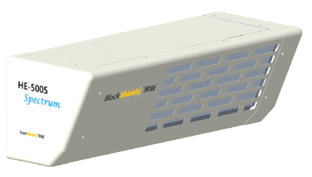

HE-500S (Spectrum) Configuration and technical parameter table


1.Product appearance pictures:

Evaporator 1 994*558*220mm(20kg)

Condensor 1620*600*520mm(90kg)

Evaporator 2 608*490*162mm(10kg)


Evaporator 1


Evaporator 2


2.Technical Parameter

Minimum temperature of the compartment -20 C

Applicable compartment volume 12-18 m

Cooling Capacity 0°C/4450W, -20°C/2400W

Ambient temperature: 30 °C

Referigrant R404A, Charge: 1.8kg

Total power consumption 3440W

Evaporator blower flow rate 2000m3/h

Defrost Automatic defrosting(hot air defrosting)and manual forced defrosting

Nominal voltage DC250~750V Low voltage rated current 21.6A

Optional Heating and remote control function

Standard high-voltage plug Taike2310537-1,1 positive and 2 negative

3.Main Configuration Table

Serial Number Name Brand Characteristic Qty
1 Compressor Haili High efficiency Jong service life and low failure rate 1
2 Three in one frequency converter BlackShields IP66 waterproof,automotive grade electronic components,high reliability 1
3 Condensor fan BlackShields High efficiency and high air volume 2
4 Evaporator blower BlackShields High efficiency and high air volume 3
5 Txv Danfuss(Denmark) Stable and reliable temperature control, strong regulation ability 1
6 Dry filter BlackShields Good seismic parformance strong drying and filtering ability 1
7 Reservior BlackShields Reasonable volume high system cleanliness 1
8 Suction pressure regulating valve Sanhua Long service iife.and reliable performance 1
9 Sight glass Sanhua Dry and wet display,clear visual appearance 1
10 Oil separator BlackShields High oil separation rate and reliable performance 1
11 Defrost value Sanhua The value body is heat-resistant and the coil has high performance 2
12 Pressure switches BlackShields Durable sensitive,and reliable 2
13 Temperature sensor BlackShields Reliable performance and high accuracy 2
14 Condenser BlackShields Ultra thin and efficient parallel flow core, corrosion-resistant 1
15 Evaporator BlackShields Internally threaded copper tube, high-eficency heat sink 2
16 Control box BlackShields Components for Automotive with high reliability and convenient operation 1
17 Shell BlackShields Sheet Metal/ABS,high strength and anti-aging 1

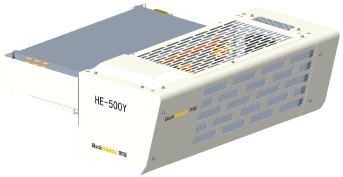

HE-500Y Configuration and technical parameter table


1.Product appearance pictures: Unit size 1244*1091*476.5mm(94kg)


2.Technical Parameter

Minimum temperature of the compartment -20 C

Applicable compartment volume:12-18 m3

Cooling Capacity 0°C/4450W, -20°C/2400W

Ambient temperature: 30 'C

Referigrant R404A, Charge: 1 8kg

Total power consumption:3300W.

Evaporator blower flow rate 2000m Th

Defrost Automatic defrosting(hot ar defrosting)ard manual forced defrosting

Nominal voltage DC250~750V Low voltage rated current 21 6A

Optional Heating and remote control function

3.Main Configuration Table

Serial Number Name Brand Characteristic Qty
1 Compressor HIGHILY High efficiency Long service life,and low failure rate 1
2 Three in one frequency converter BlackShields IP66 waterproof,automotive grade electronic components,high reliability 1
3 Condensor fan BlackShields High efficiency and high air volume 2
4 Evaporator blower BlackShields Super large air volume,stable and reliable 2
5 Txv Danfuss(Denmark) Stable and reliable temperature control, strong regulation ability 1
6 Dry Reservoir BlackShields Good seismic performance strong drying and filtering ability 1
7 Suction pressure regulating valve Sanhua Long service iife and reliable performance 1
8 Oil separator BlackShields High oil separation rate and reliable performance 1
9 Deforst value Sanhua The value body is heat-resistant and the coil has high performance 1
10 Pressure switches BlackShields Durable sensitive and reliable 2
11 Temperature sensors BlackShields Reliable performance and high accuracy 2
12 Condenser BlackShields Ultra thin and efficient parallel flow core, corrosion-resistant 1
13 Evaporator BlackShields Intemally threaded copper tube, high-eficency heat sink 1
14 Control box BlackShields Components for Automotive with high reliability and convenient operation 1
15 Shell BlackShields Sheet Metal/ABS,high strength and anti-aging 1
